Side Wall Belt

Features:

  • Suitable for conveying materials at angles of up to 90 degrees, maximizing space utilization.
  • The design prevents material spillage by eliminates the need for more transfer points
  • Available in a wide range of belt sizes, making it suitable for handling almost any material.
  • The incline angle can be easily adjusted with specially reinforced belts and press rollers, offering flexibility for varying material handling needs.
  • The reduced number of components results in lower overall system and maintenance costs compared to traditional conveyor installations.

Applications:

  • Automotive
  • Cement Industry
  • Steel Plant
  • Recycling Industry
  • Foundries

Features:

High Resilience

Sustainable

Heat & Weather Resistant

Tailored for Tough Conditions

Durable Solutions for Demanding Applications

Our rubber products are engineered for diverse industrial needs, offering superior resistance to heat, fire, oil, and abrasion. From general-purpose and chevron belts to pulley lagging and rubber sheets, each solution ensures optimal performance, durability, and reliability across material handling, safety-critical, and heavy-duty conveyor applications.

  • Product Range
  • Standard Rang-Sidewall
  • Standard Rang:Cleasts

Belt Description: One of the key advantages of this type of belt is its ability to smoothly transition from horizontal to inclined or vertical positions and back again, without experiencing bowing or sagging. This flexibility makes it ideal for applications such as S-conveyors. The cross-rigidity of the base belt is crucial in maintaining stability at these deflection points, allowing it to bend without losing its shape or compromising performance. Additionally, the return section of the belt, supported by stub idlers, depends on the cross- rigidity to ensure consistent operation and minimize wear. This feature guarantees reliable performance even in complex conveyor configurations.

TYPE A-XE
TYPE: A-XE

Suitable for light duty applications only.
Available in two or three ply range

TYPE A-XOE
TYPE: A-XOE

Suitable for medium to heavy duty applications

TYPE A-XE+2
TYPE: A-XE+2

With increase in cross-rigidity and
suitable for heavy duty applications

TYPE A-XESC
TYPE: A-XESC

With increase in cross-rigidity with steel cross rigid fabric and
suitable for heavy duty applications

X = Cross-Stabilised construction

E = Polyester Tension Plies

+2 = Number of Separate Cross-Stabilising Plies

SC = Steel Cord Cross-Stabilised

TYPE A-XE

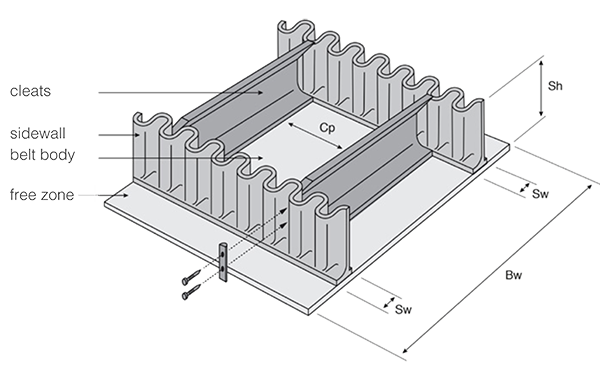

Sh = Sidewall Height

Bw = Belt Width

Cp = Cleast Pitch

Sw = sidewall-foot with

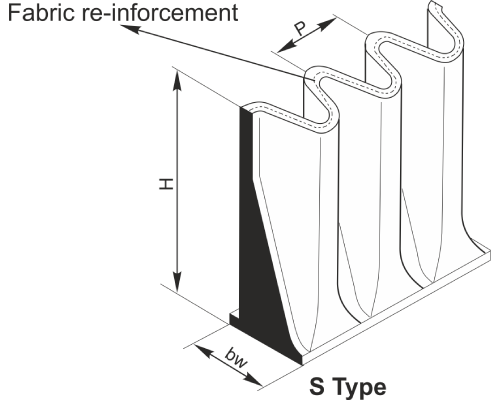

TYPE Height (H), mm Base Width (bw), mm Pitch (P), mm Wt, kg/m
S 40 50 40 0.8
60 50 40 1.8
80 50 40 2.0
100 50 40 2.2
120 50 40 2.4
120 75 60 2.65
HD-S
(Fabric reinforced)		 160 75 60 4.8
200 75 60 6.5
240 75 60 7.4
280 75 60 8.5
300 75 60 9.5
TYPE A-XE

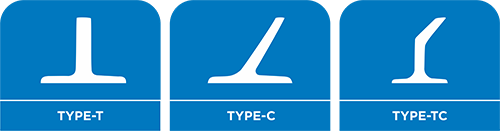

TYPE HEIGHT , mm BASE WIDTH, mm
Type T-40 40 70
Type T-50 50 70
Type T-60 60 100
Type T-80 80 100
Type C-75 75 80
Type C-90 90 110
Type C-110 110 110
Type TC-75 75 80
Type TC-90 90 100
Type TC-110 110 110
Type TC-140 140 160
Type TC-180 180 160
Type TC-220 220 260
Type TC-260 260 175
Type TC-280 280 175
TYPE A-XE
